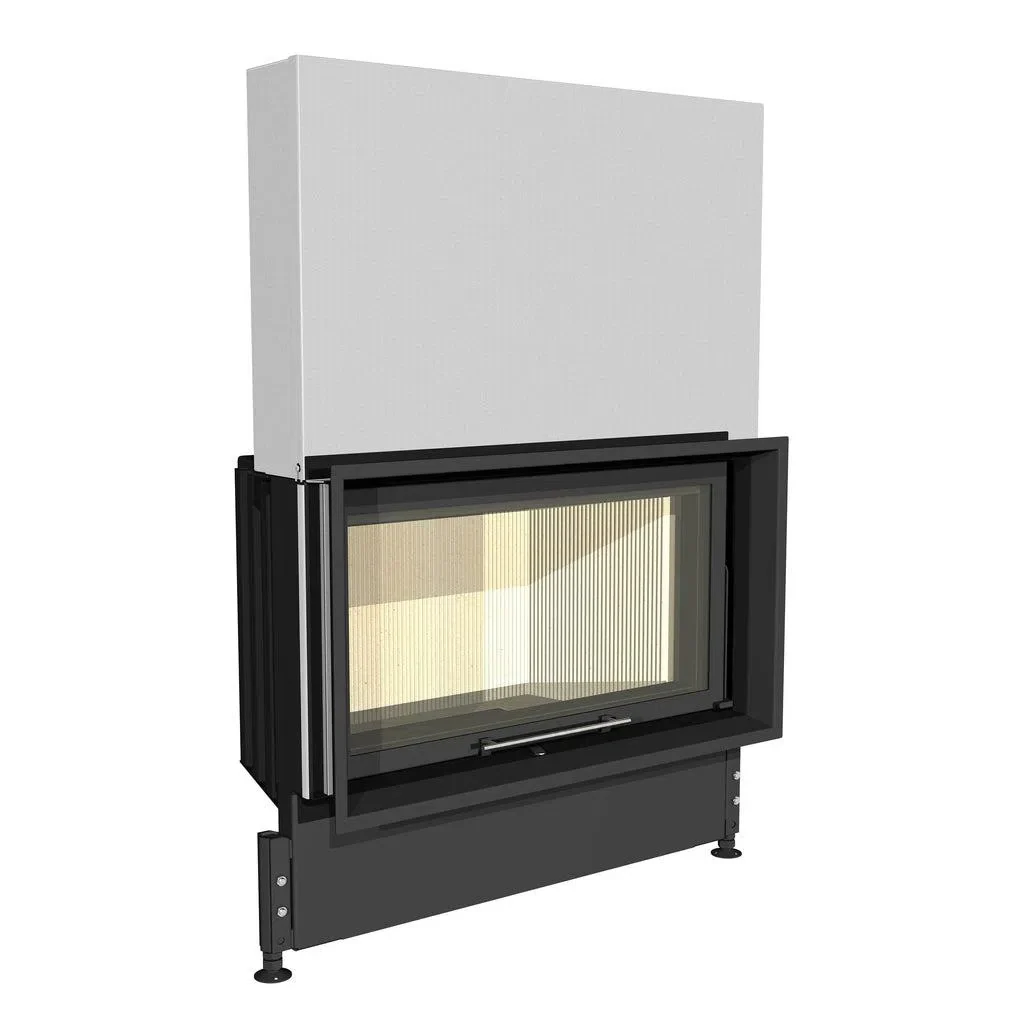

The flagship of our range, this fireplace has a large door/ glass area and popular vertical opening door. High heating performance, optimised dimensions, smart design and technology ideal for many applications.

Features

• Deep focus for aesthetic burning
• Primary and Secondary Air / Three-Stage Combustion
• Hygienically safe ecological varnish
• Possibility of air supply for combustion
  from external environment
• Height-adjustable position by means of set screws
• High glass purity when burning
• Preparation for automatic combustion control
• All-sand construction of the fireplace insert
  before surface treatment
• Automatic combustion control possible

Specifications

Door Dimensions (w h) : 860/480mm

Overall Dimensions (w h d) : 970/1320 - 1550/535mm

Weight: 185-330kg

Flue Outlet: 8"

Air Supply Duct: 125mm

Minimum Hearth Dimensions (w d) : 1300/650mm

Log Length/Diameter: 55/40cm

Average Wood Consumption: 4.5kg/hr

Average Efficiency EU: 80%

Nominal Heat Output: 15kW

Maximum Heat Output: 25 kW

Door Opening System: Vertical

Manufacturer: Kobok

Flue Options

8" Zero Clearance Flue Kit

Downloads

PRODUCT BROCHURE (PDF)

INSTALLATION & OPERATING MANUAL (PDF)

Installation

Need someone to install your fireplace? Find out how we can help.

Flueing and Accessories

• Flueing or accessories are not included in the price
• Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirements
